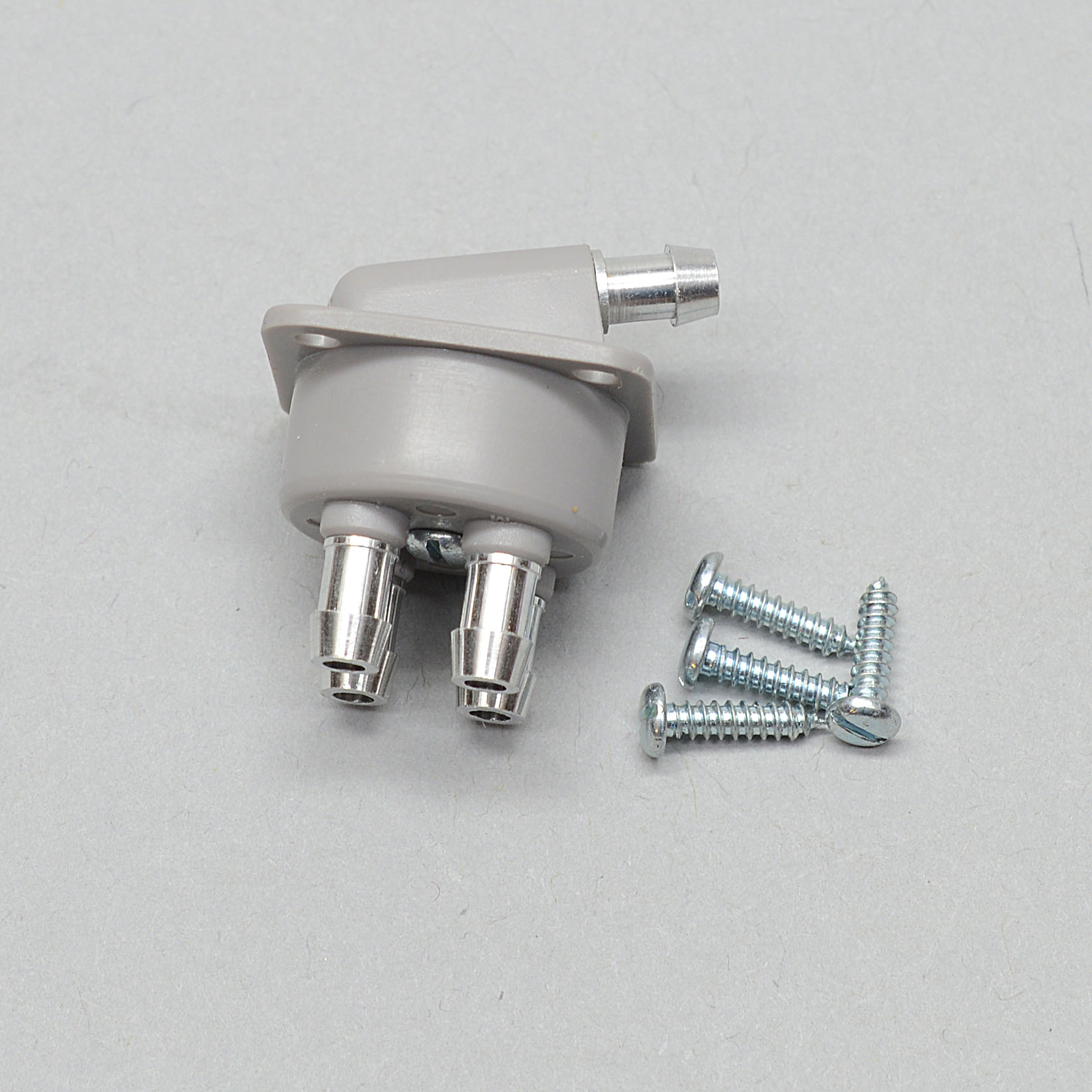

Robart Ultra Fueler

Description

Robat Ultra Fueler

This four-valve fuel switch fills the ame as the Super Fueler, but for the use with pressurizedtank systems. It’s for sport, pattern and pylon. Safe to use with glow,gas and smoke fluids.

Instructions –

1- Determine location and drill or cut a 3/4″ diameter hole.(Fueler should be mounted to a flat surface.)
2 – Using screws provided, mount Fueler in hole.(A ply wood backer plate may be required for thin sections.)
3 – Attach fuel lines (T) to tank pick up and vent line (0) to tank overflow.
4 – Attach Fuel Line (M) to carb and pressure line (P) to muffler or crankcase pressure fitting.
