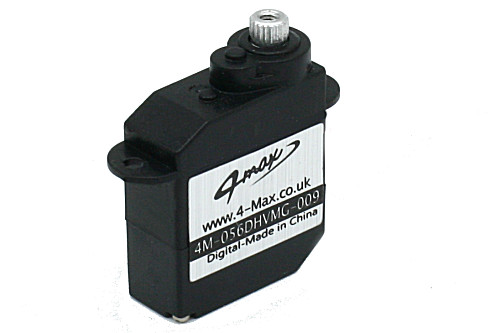

4 Max Servo 4M-056DHVMG-009

Specification

Operating Voltage Range

4.8 ~ 8.4VDC

Motor

Coreless Motor (High Voltage)

4.8V Operating Torque/Speed

0.9Kg.cm/0.14sec/60°

6.0V Operating Torque/Speed

1.05Kg.cm/0.12sec/60°

7.4V Operating Torque/Speed

1.2Kg.cm/0.10sec/60°

Dimensions

19.8 x 8.2 x 21.5.mm

Gears

Metal Gear

Weight

5.6g / 0.197oz

Servo Arm

20 Teeth

Wire Length

150mm / 5.91″
