£1.64 – £3.36

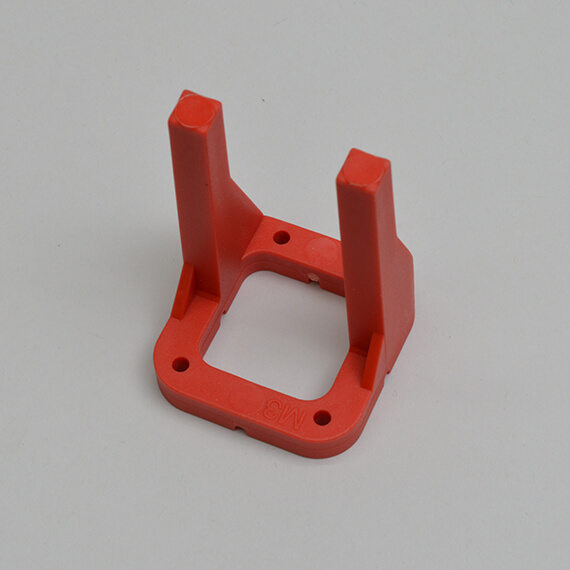

Moulded in Red glass filled nylon. These mounts have extra long arms for 4 stroke engines and for difficult engine bay fixing. The motor is fitted using the self tap screws after first drilling pilot holes.
Sizes available –
| CODE | SIZE |
DISTANCE BETWEEN ARMS |
ARM LENGTH |
MOUNTING PLATE |
| SL800-R | 60/80 cu.ins | 39mm | 90mm | 64mm x 64mm |
| SL801-R | 30/45 cu.ins | 35mm | 75mm | 55mm x 55mm |
| SL802-R | 28/40 cu.ins | 32mm | 70mm | 50mm x 50mm |
| SL803-R | 19/35 cu.ins | 27mm | 67mm | 43mm x 43mm |
| SL804-R | 15/19 cu.ins | 25mm | 57mm | 40mm x 40mm |
| SL805-R | 0.15 cu.ins | 20mm | 30mm | 35mm x 35mm |
| Weight | 9.5 kg |
|---|---|
| Dimensions | 2.0 × 7.0 × 4.0 cm |
| Long Series Engine Mount Sizes | 60-80 cu.ins….SL800-R, 30-45 cu.ins….SL801-R, 28-40 cu.ins….SL802-R, 19-35 cu.ins….SL803-R, 15-19 cu.ins….SL804-R, 0.15 cu.ins….SL805-R |
