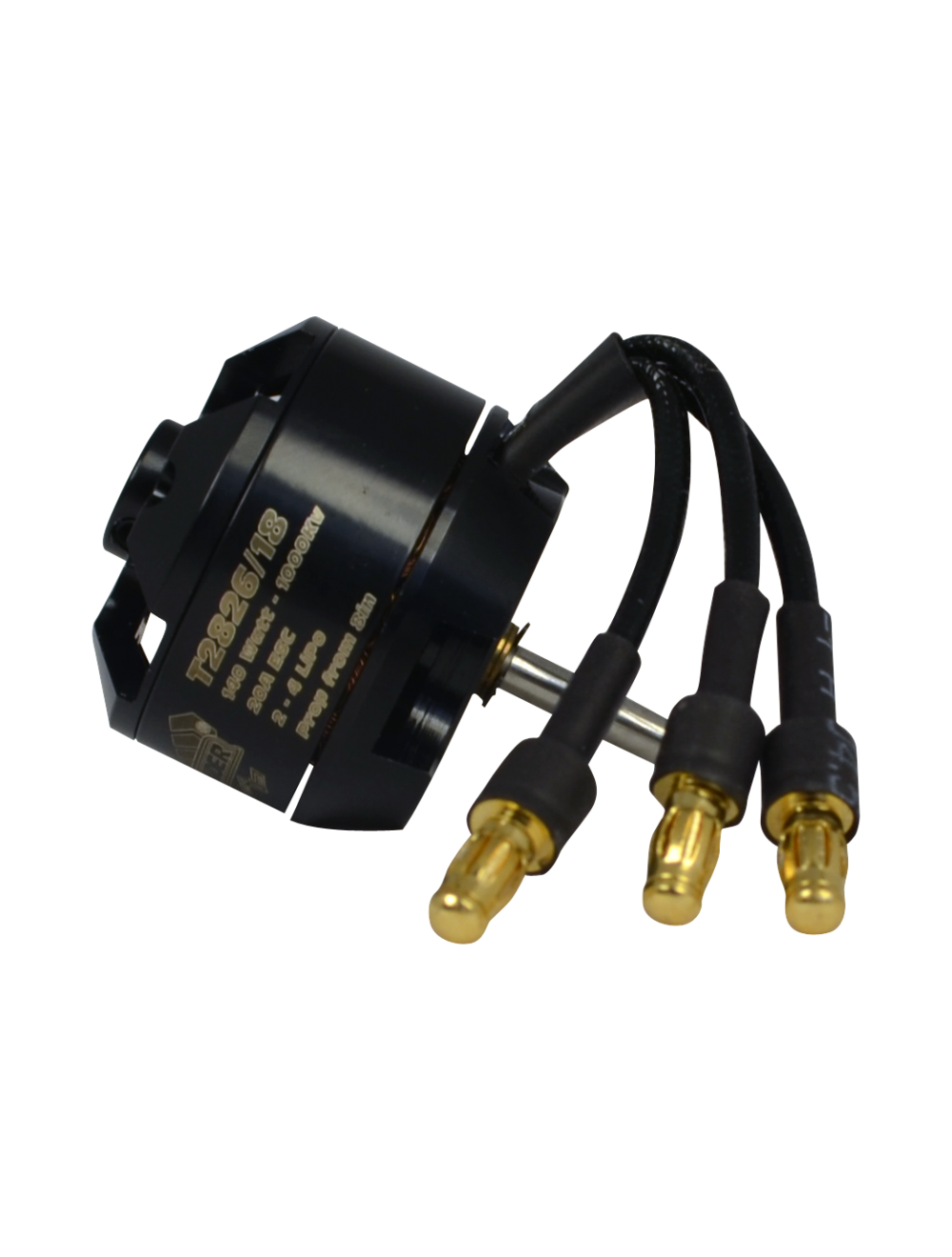

Overlander 2826/18 1000KV motor Tornado Thumper V3 range

Description

The 2826/18 1000KV motor is part of Overlander’s Tornado Thumper V3 range. These motors are manufactured to Overlander’s demanding standards, using the finest quality components and state of the art CNC machine tools.

KV (rpm/V) 1000

Power 140W

Idle Current 0.5A

Maximum Amp Draw 20A

Motor Type Outrunner

Recommended ESC 20A

LiPo Voltage Range 2 – 4S

NiMH Voltage Range 6 – 12S

Minimum Propeller Size 8 X 5 (with 4S LiPo)

Maximum Propeller Size 9 x 4.7 (with 2S LiPo)

Shaft Diameter (mm) 3

Motor Poles 14

Connector 3.5mm Gold

Diameter (mm) 27.8

Length 24

KV (rpm/V) 1000

Weight (g) 40

If you require a motor mount we would recommend our small electric motor mount SL901-R
